Description

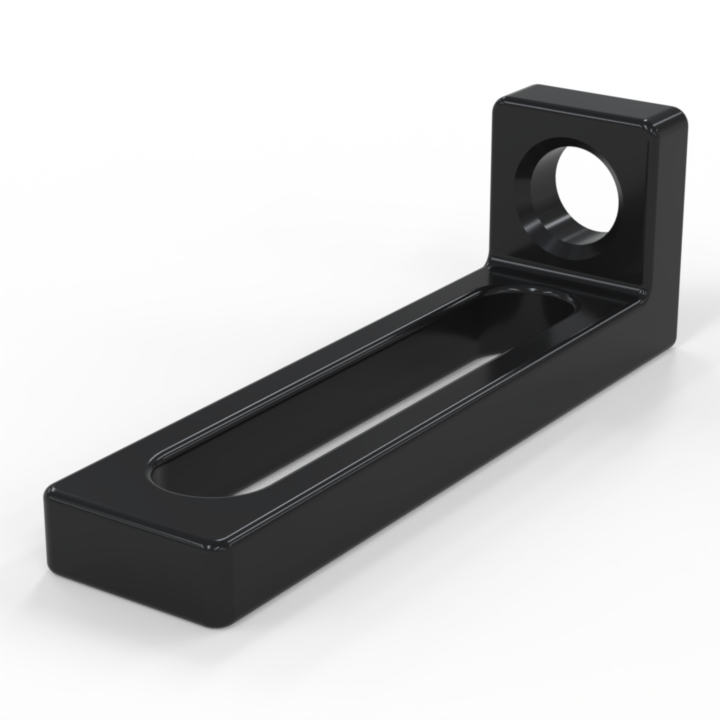

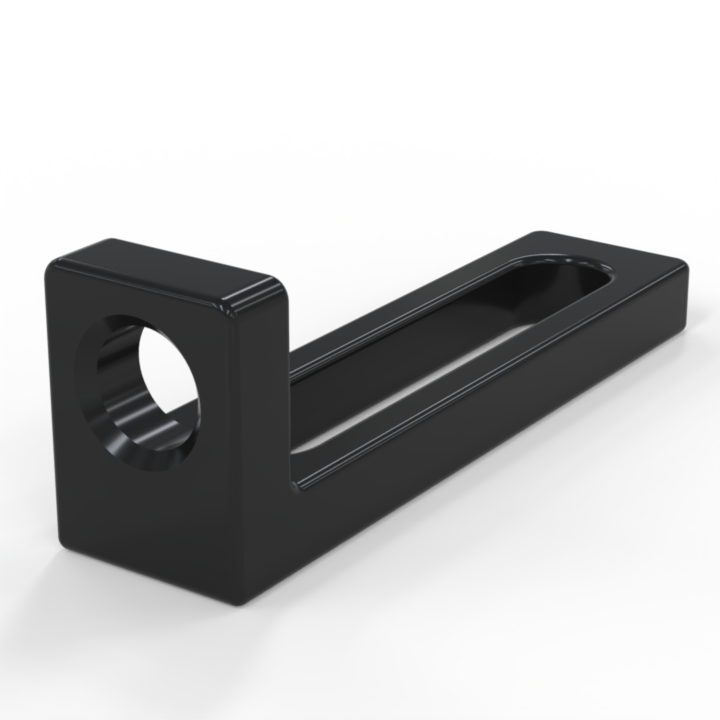

L-Block - 1.6" x 4.7" - Inch (16mm)
These L-Blocks are designed to fit with 16mm (.63") hole fixture tables with a 2" (50.8mm) hole pitch. Pair these blocks with a ball lock bolt or locating pin to attach it to your welding table.
- Width: 1.18" - (30mm)
- Height: 1.57" - (40mm)
- Length: 4.72" - (120mm)
- Thickness 0.47" - (12mm)
- Slot Length: 3.00" - (76.2mm)
- 1" (25.4mm) hole offset from leading edge
- Fits 16mm (.630) holes on 2" (50.8mm) hole pattern
- Nitrided
