Thomson Tool Systems Inc.

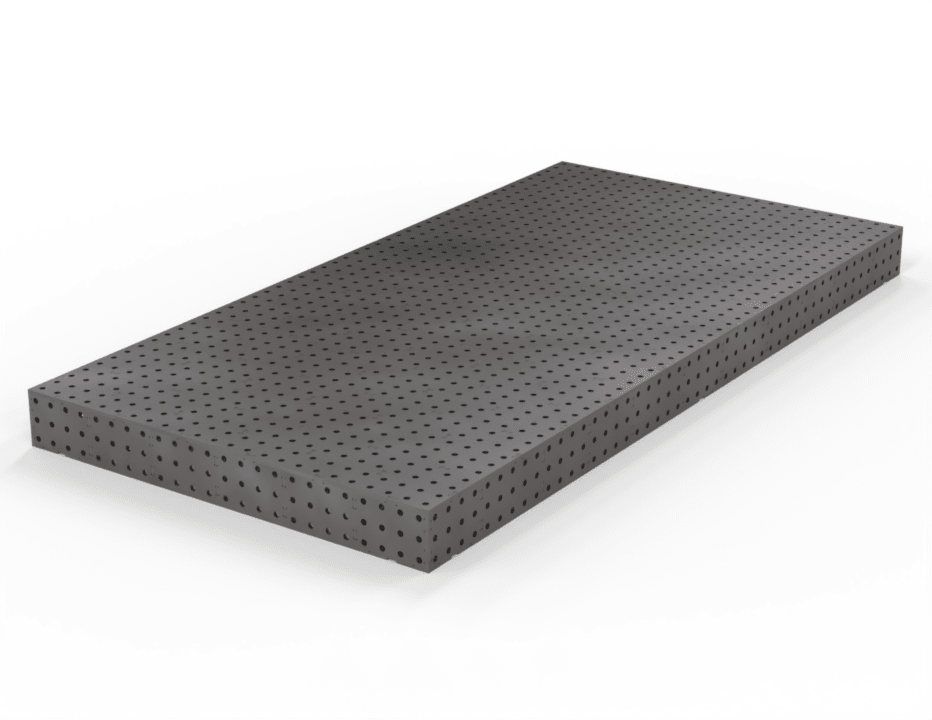

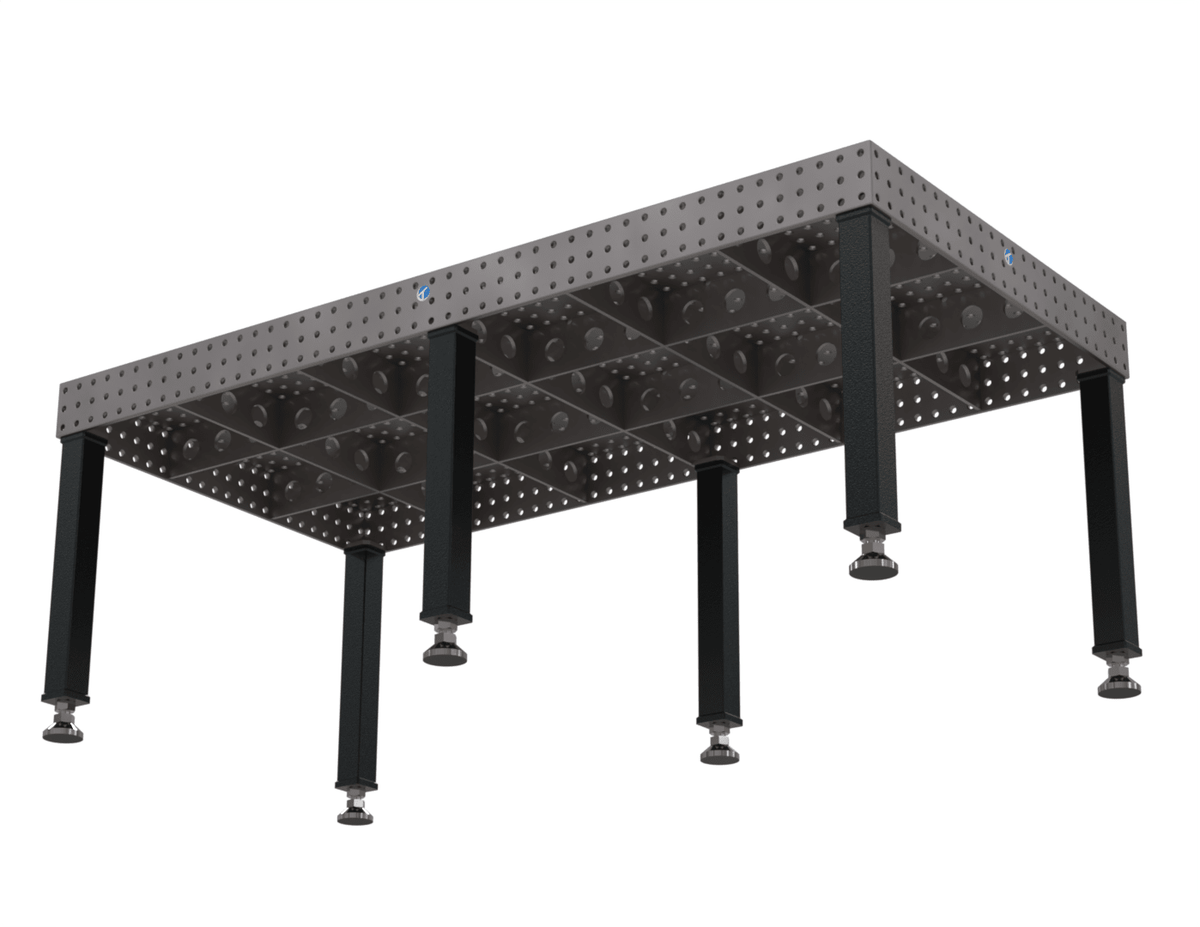

Welding Fixture Table / Fixture Block

These Fixture Tables/ Fixture Blocks feature standard size 16mm (0.630”) holes to accommodate any 16mm and ⅝” tooling. This package includes the components for the fixture block only and may be customized with different leg kit styles. The CNC laser cut method allows us to offer these blocks at lower cost compared to cast/machined tables. In addition to reducing the cost we maintain a modest and realistic approach to tolerances used in general fabrication environments.

• Dimensions: 48" (W) x 96" (L) x 6" (H)
• Hole Size: 16mm (0.630")
• Hole Pitch: 2"
• CNC Laser cut features +/- 0.005" accuracy

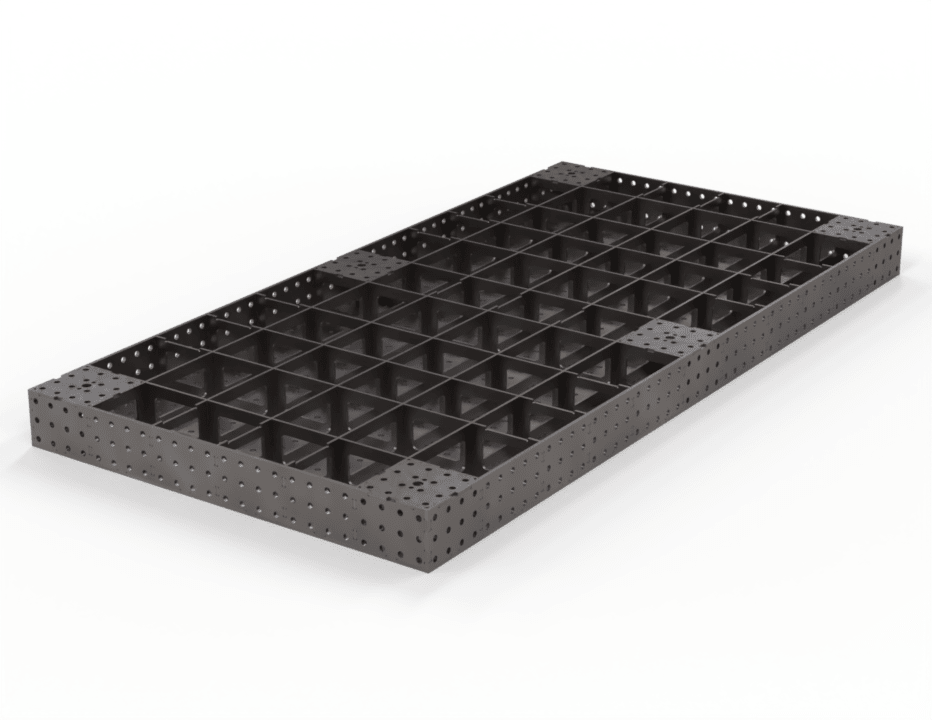

• Support structure ¼” thickness on all variations
• Optional top and side thickness: ¼” - ⅜” - ½”

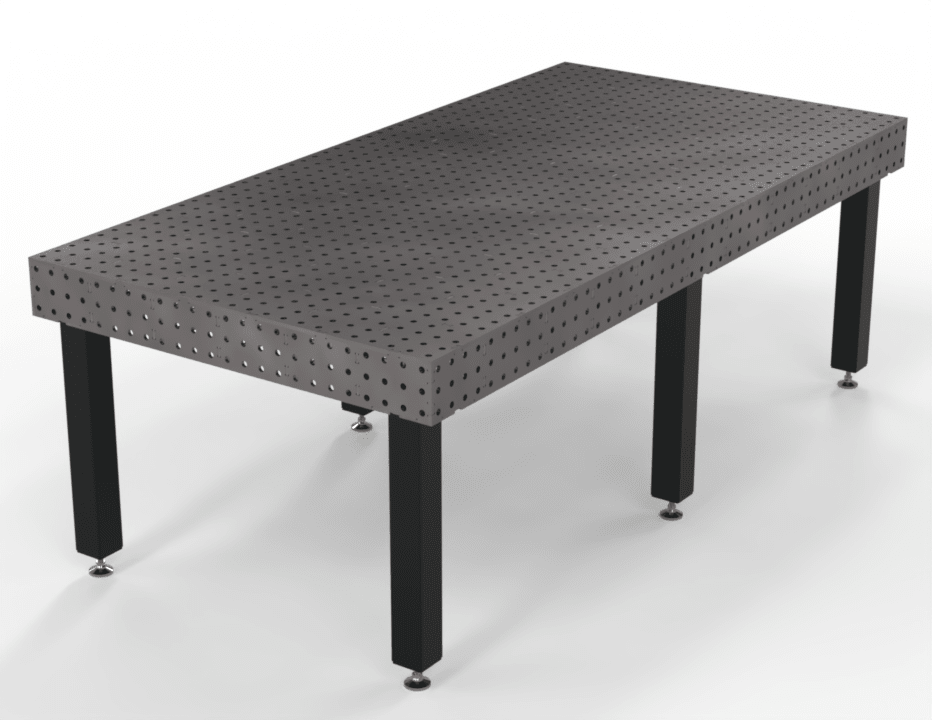

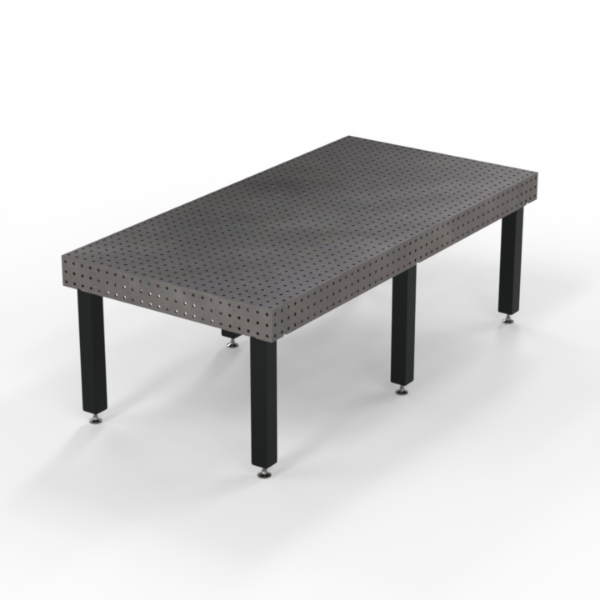

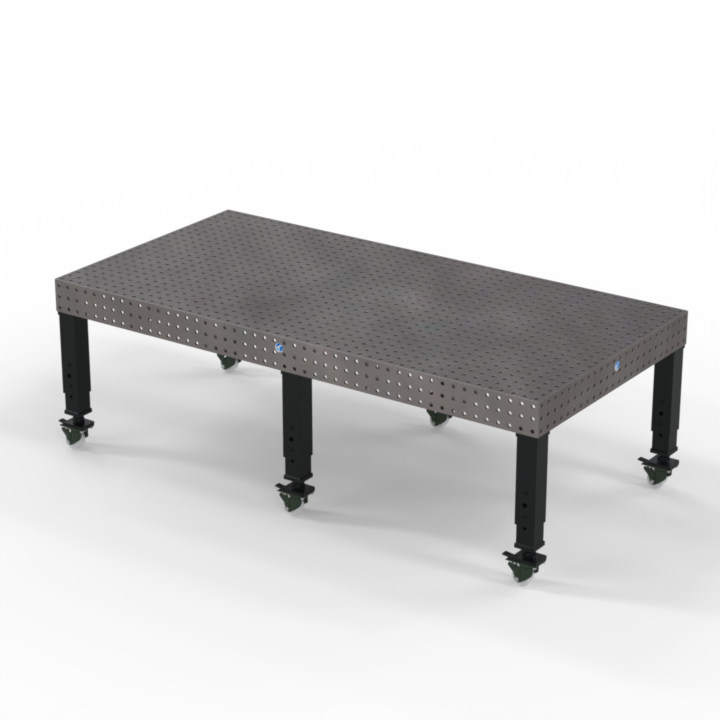

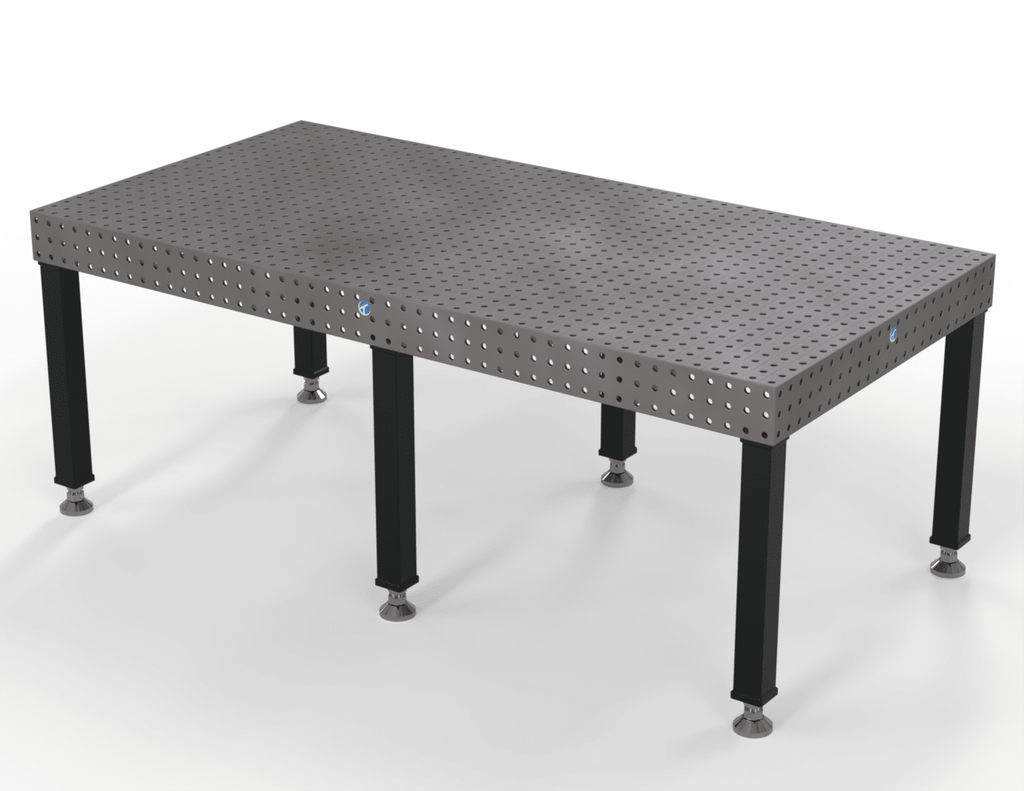

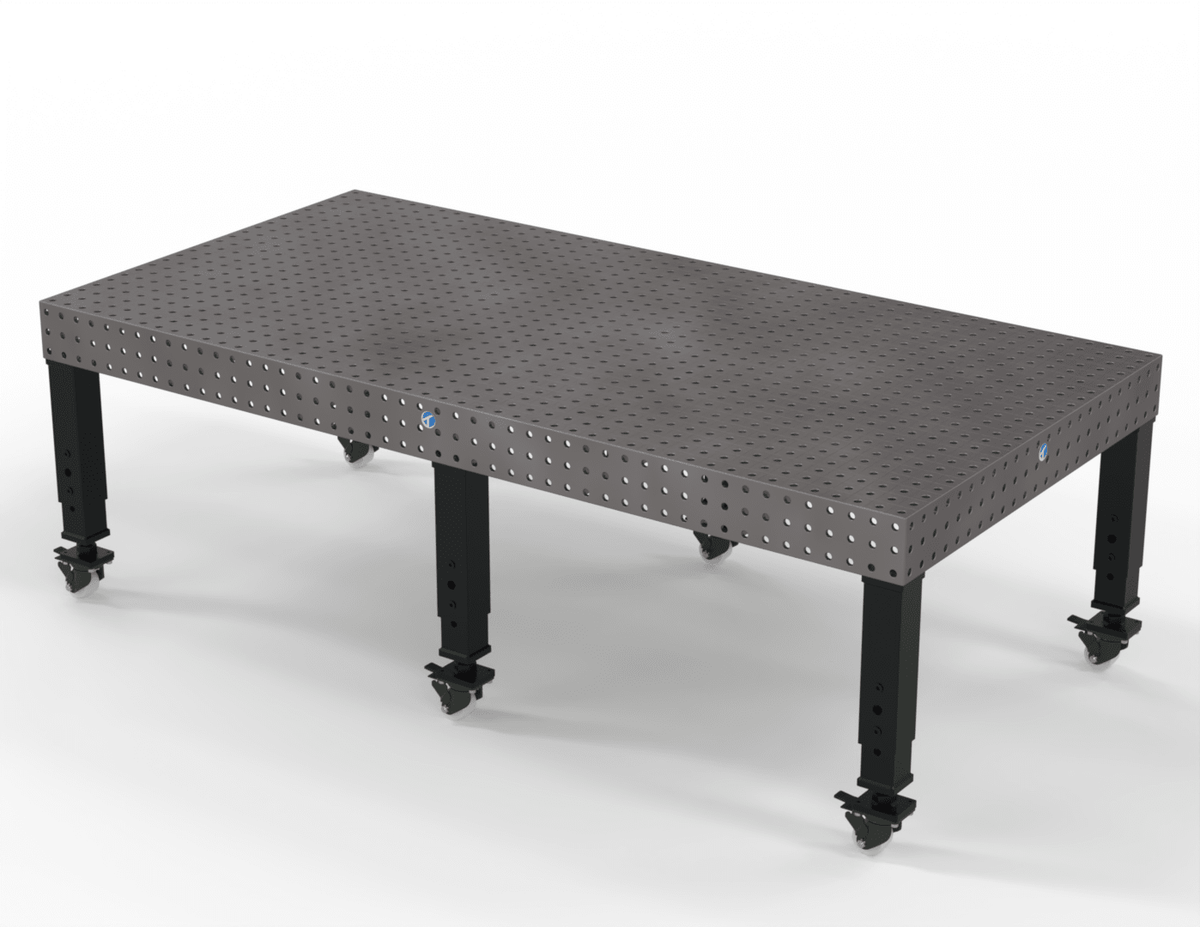

*Leg Kits - sold separately
**Parts Kit - Parts only with no welding and is intended for a weld/ build yourself approach
***Shipping/ Freight can be calculated and invoiced separately. Please select the customized shipping quote on check out, unless using the pick up option.
