Description

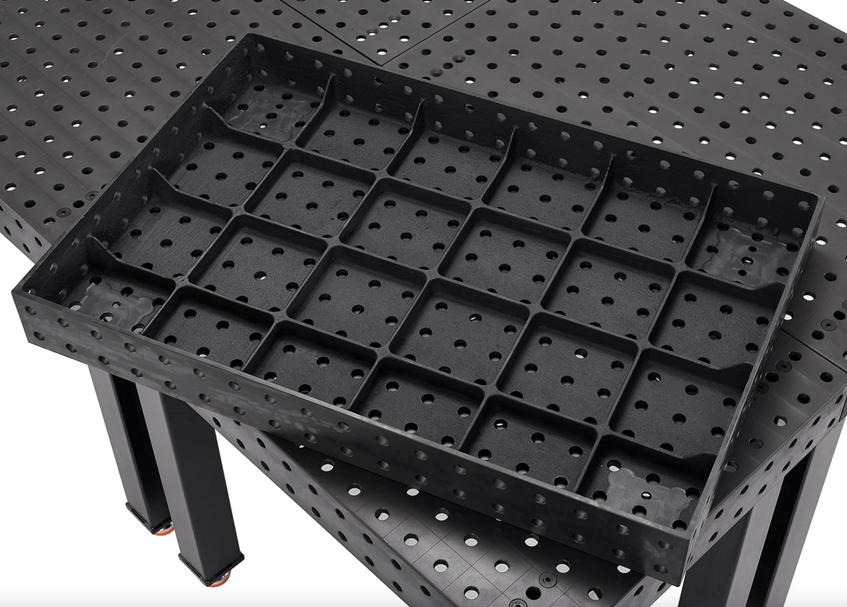

Cast Iron Welding Fixture Table
Buy 1 and get 10% of each additional Table
These Fixture Tables/ Fixture Blocks feature standard size 16mm (0.630”) holes to accommodate any 16mm and ⅝” tooling. This package includes the fixture table and the 4 legs with leveling feet.
- Dimensions: 24" (W) x 36" (L) x 4" (H)
- Hole Size: 16mm (0.630")
- Hole Pitch: 2"
- Working Height 33.5"-36"
- Surface Flatness: +/- 0.0075"
- Thickness: 3/8" Top and 5/16" Sides
- Edge Perpendicularity: +/- 0.01
- Static Load: 1240lbs (Based on even distribution)
- Surface Finish: Black Nitride Surface Treatment
*Tables may be connected together using the Table Locking Bolts sold separately.
**Flat rate shipping anywhere in Canada $200 or pick up options available. Some exceptions may apply.
